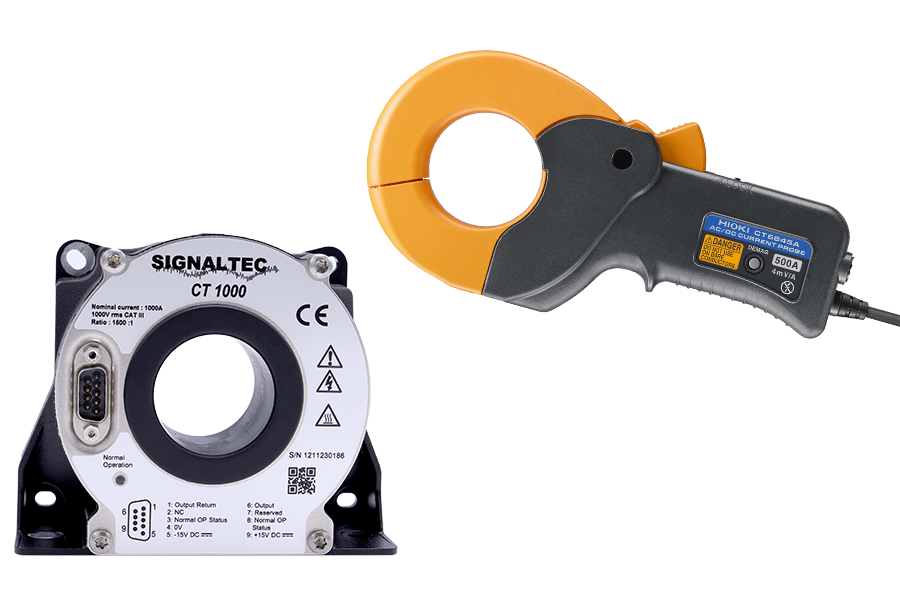

电流传感器&电流钳

电流传感器&电流钳

DEWETRON 提供多种电流测量解决方案，从简单的分流器到电流钳和高精度零磁通电流传感器。有不需要任何供电的交流电流传感器，也有可由 DEWETRON 仪器供电的直流和交流电流传感器。

了解更多
next
电话0755-29959275 ，158 1871 5053
产品概述
产品参数
应用市场
A handheld AC/DC current clamp CT6841A with 20 A AC/DC. The current clamp is black and orange. A handheld AC/DC current clamp CT6843A with 200 A AC/DC. The current clamp is black and orange. A handheld AC/DC current clamp CT6845A with 500 A AC/DC. The current clamp is black and orange. A handheld AC/DC current clamp CT6846A with 1000 A AC/DC. The current clamp is black and orange.
CLAMP (AC/DC) CT6841A CT6843A CT6845A CT6846A
RATED CURRENT 20 A AC/DC 200 A AC/DC 500 A AC/DC 1000 A AC/DC
BANDWIDTH (-3 dB) 2 MHz 700 kHz 200 kHz 100 kHz
MEASURABLE CONDUCTOR DIAMETER 20 mm or less 20 mm or less 50 mm or less 50 mm or less
OUTPUT VOLTAGE 100 mV/A 10 mV/A 4 mV/A 2 mV/A
OUTPUT RESISTANCE 50 Ω ±10 Ω 50 Ω ±10 Ω 50 Ω ±10 Ω 50 Ω ±10 Ω
MEASUREMENT ACCURACY DC ±0.2 % of reading
±0.05 % of range		 ±0.2 % of reading
±0.02 % of range		 ±0.2 % of reading
±0.02 % of range		 ±0.2 % of reading
±0.02 % of range
MEASUREMENT ACCURACY
≤100 Hz		 ±0.2 % of reading
±0.01 % of range		 ±0.2 % of reading
±0.01 % of range		 ±0.2 % of reading
±0.01 % of range		 ±0.2 % of reading
±0.01 % of range
PHASE ACCURACY <100 Hz ±0.1° ±0.1° ±0.1° ±0.1°
RATED SUPPLY VOLTAGE ±11 V to ±15 V ±11 V to ±15 V ±11 V to ±15 V ±11 V to ±15 V
MAX. RATED POWER 5 VA or less 6 VA or less 7 VA or less 7 VA or less
RECOMMENDED TRION
SUB-MODULE		 TRION-POWER-SUB-dLV-5V TRION-POWER-SUB-dLV-5V TRION-POWER-SUB-dLV-5V TRION-POWER-SUB-dLV-1V



零磁通传感器 (交流/直流)

    NOMINAL
RMS [A]		 SCALING
[A/A]		 BANDWIDTH
[kHz]		 ACCURACY
[%]		 INNER DIAMETER
[mm]		 RECOMMENDED
INPUT MODULE
CT-100 A close-up of a SIGNALETEC CT 100, Current Transducers through holes with nominate current of 100A. 100 500 2000 0.002 28 TRION(3)-18xx-POWER-4
+TRION-SUB-CT
CT-200 A close-up of a SIGNALETEC CT 200, Current Transducers through holes with nominate current of 200A. 200 1000 1100 0.001 28 TRION(3)-18xx-POWER-4
+ TRION-SUB-CT
CT-400 A close-up of a SIGNALETEC CT 400, Current Transducers through holes with nominate current of 400A. 400 1500 800 0.0008 28 TRION(3)-18xx-POWER-4
+ TRION-SUB-CT
CT-500 A close-up of a SIGNALETEC CT 500, Current Transducers through holes with nominate current of 500A. 500 750 520 0.00115 38 TRION(3)-18xx-POWER-4
+ TRION-SUB-CT
CT-1000 A close-up of a SIGNALETEC CT 1000, Current Transducers through holes with nominate current of 1000A. 1000 1500 440 0.0012 38 TRION(3)-18xx-POWER-4
+ TRION-SUB-CT
CT-2000 A close-up of a black SIGNALETEC CT 2000, Current Transducers through holes with nominate current of 2000A. 2000 2000 140 0.0012 70 TRION(3)-18xx-POWER-4
+ TRION-SUB-CT

供电电压: ±15 V

汽车
可再生能源和绿色能源
航空航天
制造业及工业
