BODE500网络分析仪， 环路分析仪，PDN阻抗测试仪， 450MHZ

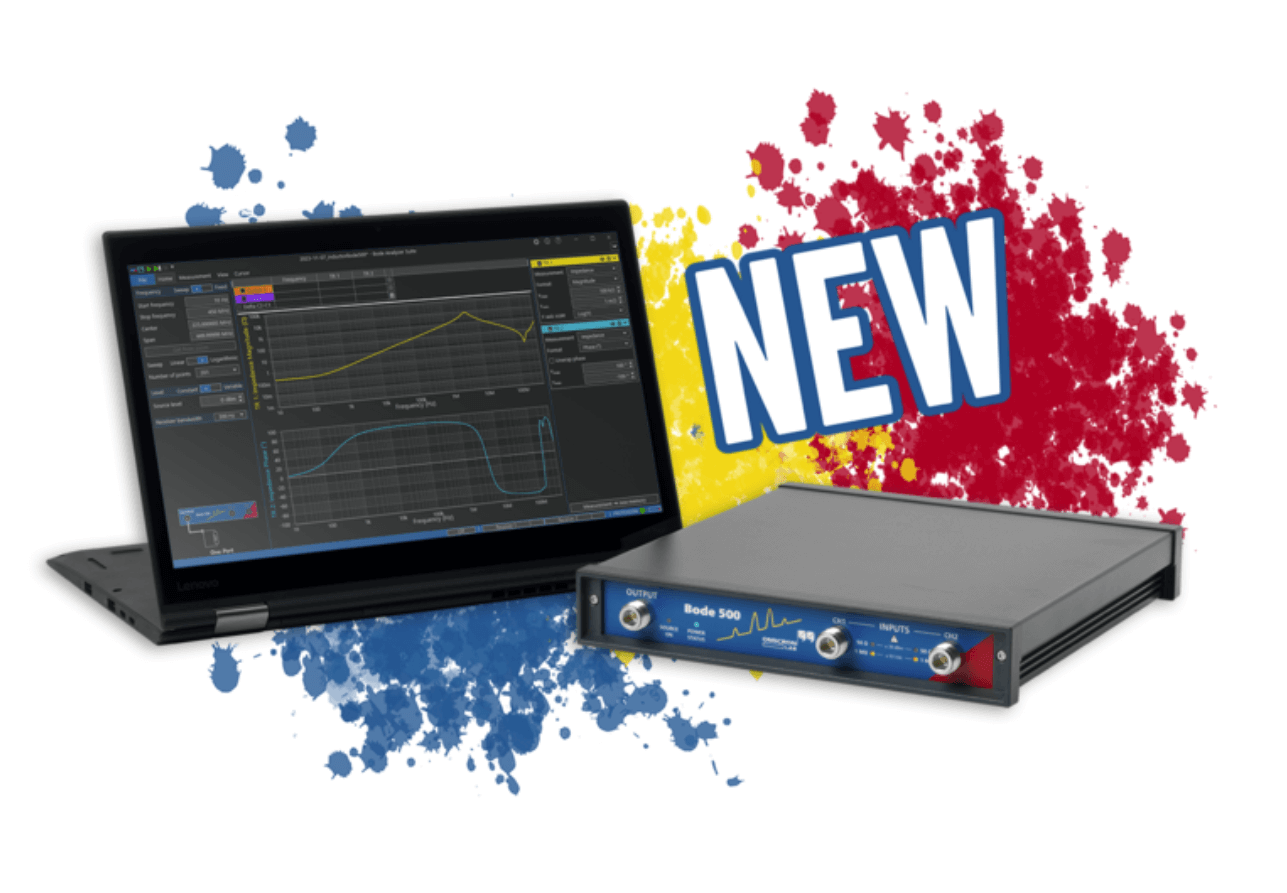

The Bode 500 is the most powerful analyzer from OMICRON Lab. Its ultra-wide frequency range enables precise measurements from 10 mHz* up to 450 MHz.
The Bode 500 offers high linearity and a high dynamic range of > 120 dB to enable accurate vector network analysis, frequency response analysis, and impedance measurements. The switchable inputs provide 50 Ω termination and a high impedance setting with ac-coupled 1 MΩ for measurements on active systems and the use with external probes.
With 66 dB of dynamic range on the output and a maximum power level of 16 dBm, the analyzer offers enough signal injection power for loop gain and output impedance measurements on switching converters and power distribution networks (PDN). These capabilities make the Bode 500 the instrument of choice for power integrity verifications and loop stability measurements.
The Bode 500 is a silent, fanless, portable instrument that can be powered by Ethernet (PoE), USB (USB-PD), or a standard power supply. The analyzer offers a USB-C and an Ethernet interface for connection to the network or the control computer. When used with the powerful Bode Analyzer Suite, the Bode 500 offers the same user experience and ease of use as the popular Bode 100
Waveform Sinusoidal Frequency range 10 mHz* to 450 MHz Signal level range -50 dBm to 16 dBm** 4 mVpp to 8 Vpp (no load) 2 mVpp to 4 Vpp (50 Ω load) Source level accuracy ± 0.2 dB (dc to 100 MHz) ± 0.6 dB (100 MHz to 450 MHz) Source signal dc offset Up to 35 kHz: < 5 mV or < 0.2% of Vpp Above 35 kHz: < 2 mV Frequency accuracy after adjustment ± 0.5 ppm ± 0.5 ∙ step size Frequency step size / resolution 3.52 µHz Frequency stability ± 1 ppm (< 1 year after adjustment) ± 2 ppm (< 3 years after adjustment) Source impedance 50 Ω Return loss > 30 dB, > 35 dB typical (dc to 100 MHz) > 26 dB, > 30 dB typical (100 MHz to 200 MHz) > 23 dB, > 28 dB typical (200 MHz to 450 MHz) Spurious signals & harmonics < - 25 dBc at full output power (typical) Maximum reverse signal / power 0.5 W = 5 Vrms (≤ 3.3 Vdc recommended)
