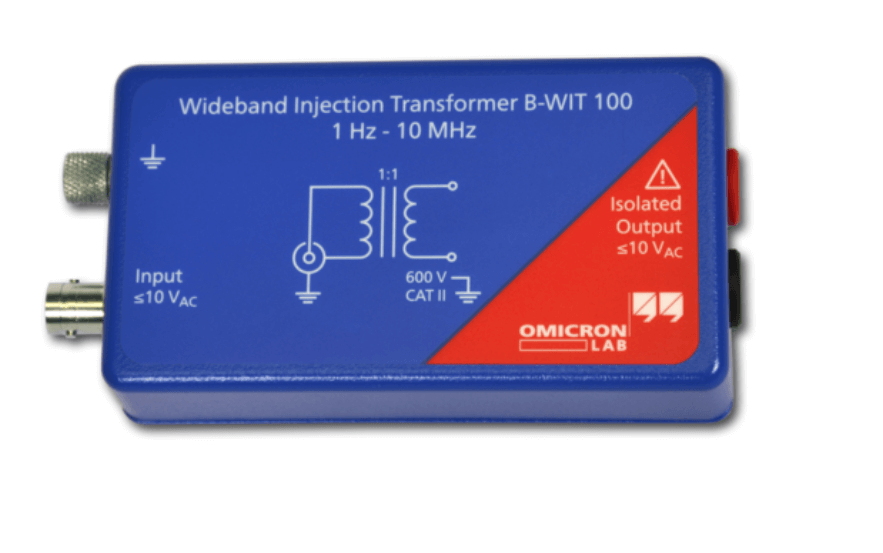

B-WIT 100 combines a wide usable frequency range (1Hz - 10 MHz) with safe isolation rated to 600V CAT II.
The B-WIT 100 is a general-purpose wide-band injection transformer for a wide range of applications.
The B-LFT 100 is specially designed to inject more signal at low frequencies.
Check out the video on the right side where we explain more about the properties and parameters of injection transformers for loop gain measurements.
Key Features:
- Optimized for signal insertion into control loops
- Extremely wide usable frequency range: 1 Hz – 10 MHz
- High linearity & low insertion loss
- Safe isolation rated to 600 V CAT II
Some Technical Data:
- Usable frequency range: 1 Hz – 10 MHz
- -3 dB frequency range: 7 Hz – 5 MHz (typ.)
- Insertion loss: < 0.5 dB @ 10 kHz
- Turns ratio: 1:1
- Pri-Sec capacitance: 120 pF @ 1 kHz (typ.)
