B-LFT 100， 低频注入变压器

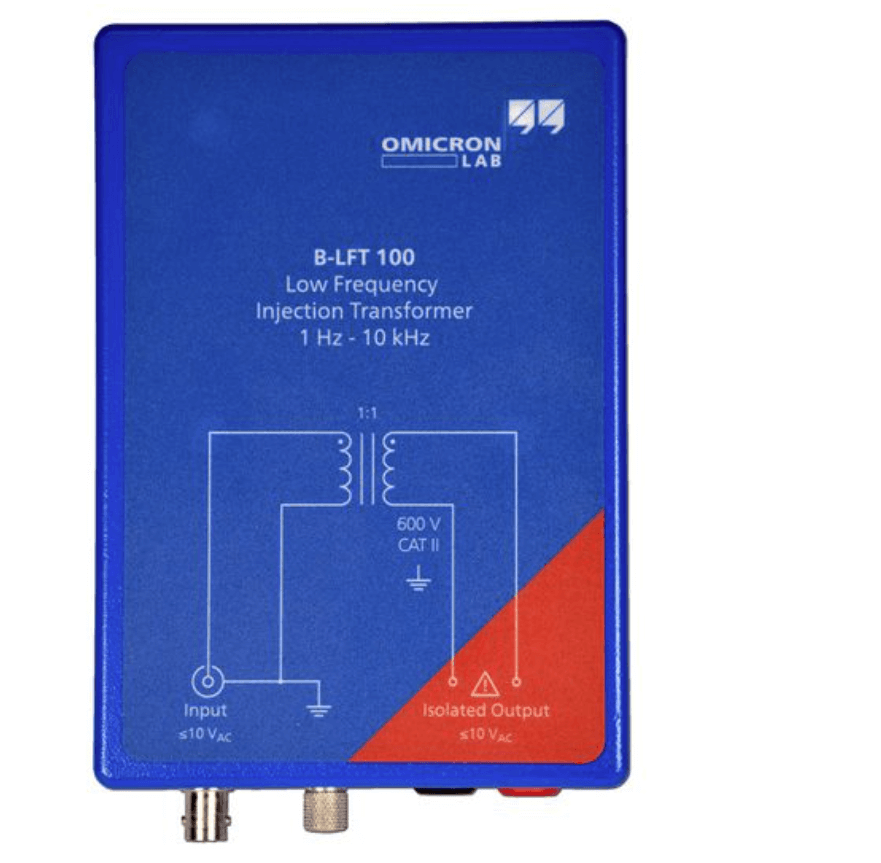

Low-Frequency Injection Transformer B-LFT 100

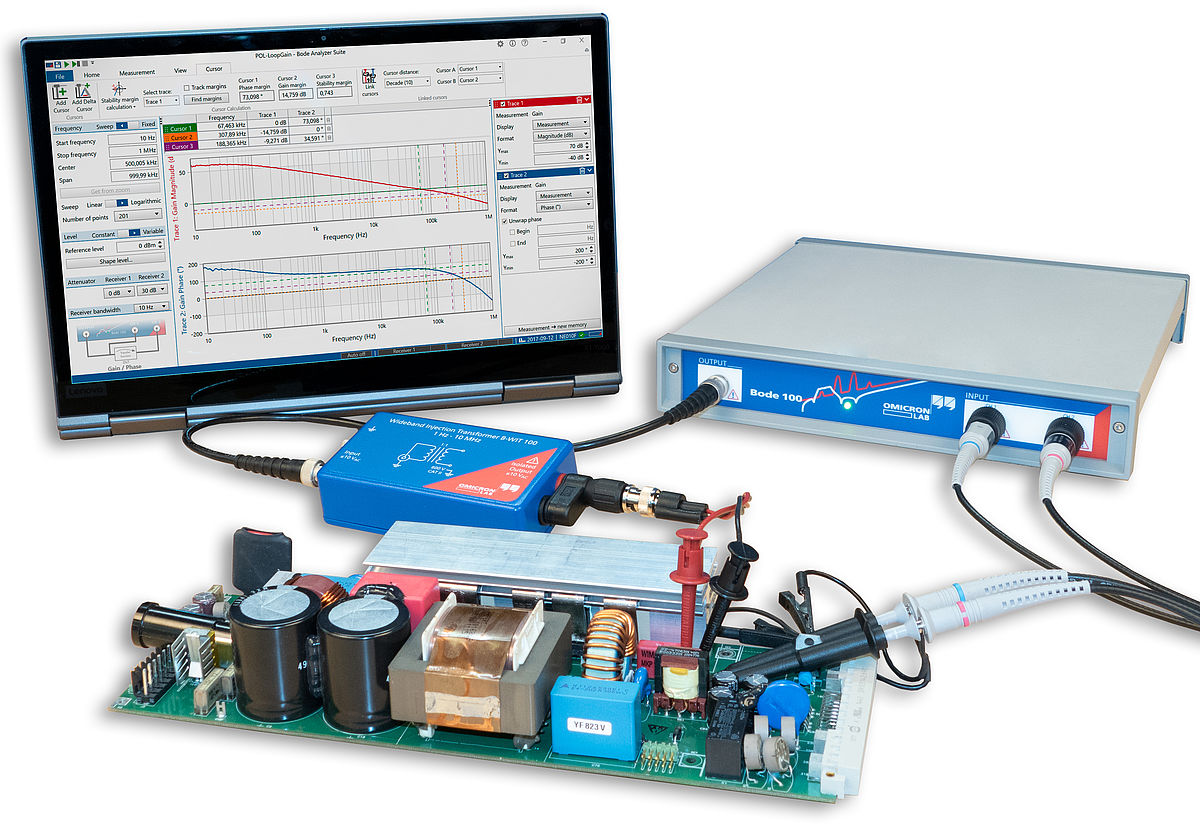

Sometimes you need more power at low frequencies. The B-LFT 100 is specially designed to inject low-frequency signals into slow control loops such as PFC regulators.
To ensure maximum signal/noise in your measurements, the B-LFT 100 is capable of injecting a 1 Hz signal at the full 2 Vrms output power of Bode 100 without saturating. For your safety, B-LFT 100 features a safely isolated secondary side output with isolation rated to 600V CAT II.
Some Key Features & Technical Data:
- Optimized for low-frequency injection
- Extremely low lower - 3 dB cutoff frequency < 100 mHz (typ.)
- Upper -3 dB frequency: >15 kHz (typ. 20 kHz)
- Low insertion loss: < 1 dB (@ 100 Hz)
- safe isolation (600 V CAT II)
- Turns ratio: 1:1
