BODE100阻抗分析仪
BODE100阻抗分析仪,非常方便测试压电陶瓷和超声换能器的谐振频率和相位，可以测试50MHZ的电容，电感，变压器的阻抗特性曲线， 选配插件和贴片阻抗测试夹具
名称: BODE100阻抗分析仪
型号: BODE100
品牌: omicron-lab
产品简述：

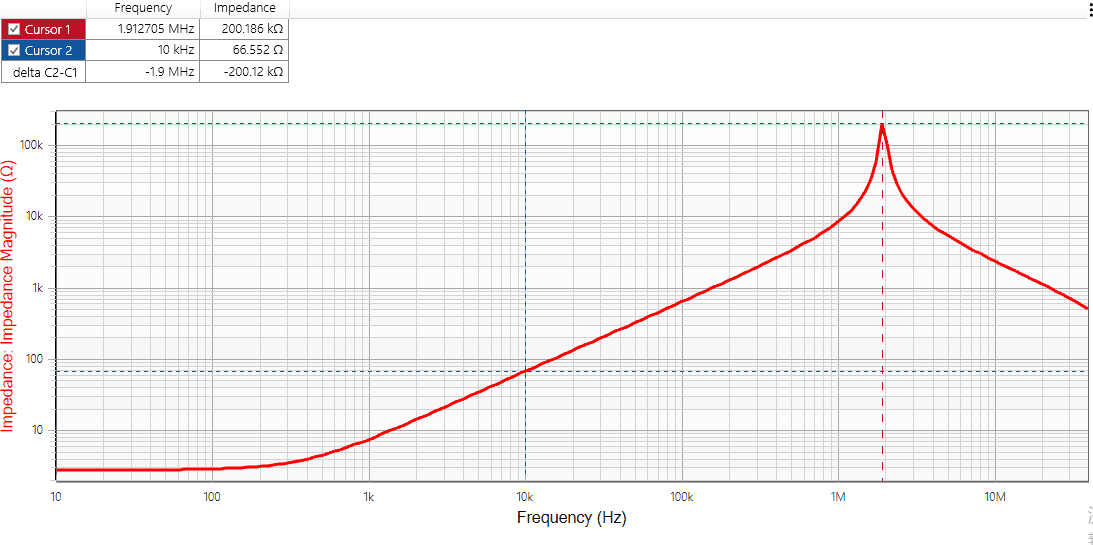

BODE100阻抗分析仪,可以测试50MHZ的电容，电感，变压器的阻抗特性曲线
| nput Impedance (high): | 1MOhm +/-2% (by design) |
| Input capacitance: | 40 to 55pF |
| Input Impedance (low): | 50 Ohm |
| Return loss for low input impedance (1Hz to 40MHz) | > 25dB (VSWR < 1.12) |
| Noise floor for the gain measurement Conditions: Resolution bandwidth = 10Hz, select internal reference, PSOURCE = 13dBm, 50O load at CH2, 20dB attenuators for CH1 and CH2 |
1Hz to 5kHz: -100dB (typical) 5kHz to 50kHz: -110dB (typical) 50kHz to 20MHz: -115dB (typical) 20MHz to 40MHz: -110dB (typical) |
| Connectors | BNC |
| Receiver bandwidth: | 1Hz to 3kHz |
| Input attenuator: | 0 dB, 10 dB, 20 dB, 30 dB, 40 dB |
| Input sensitivity: | 100 mV full scale (for input attenuator 0 dB) |
| Dynamic range: | > 100 dB (at 10 Hz receiver bandwidth) |
| Gain error: | < 0.1 dB (calibrated) |
| Phase error: | < 0.5º (calibrated) |

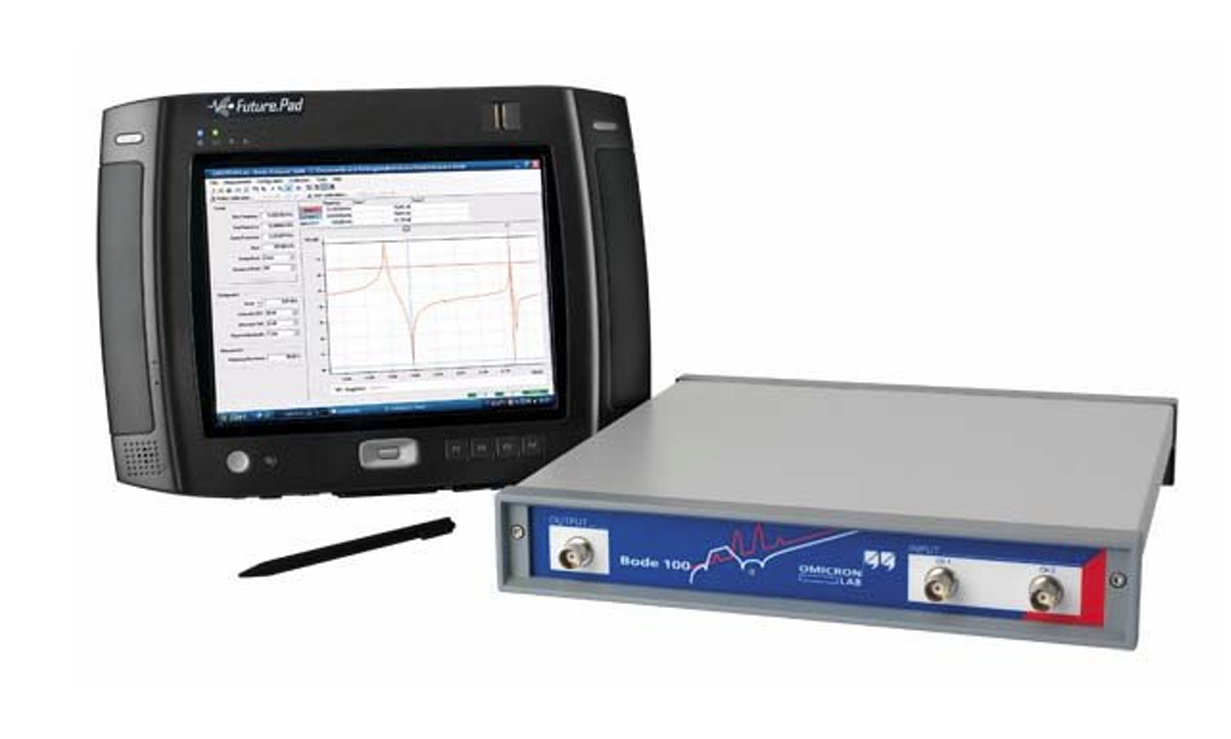

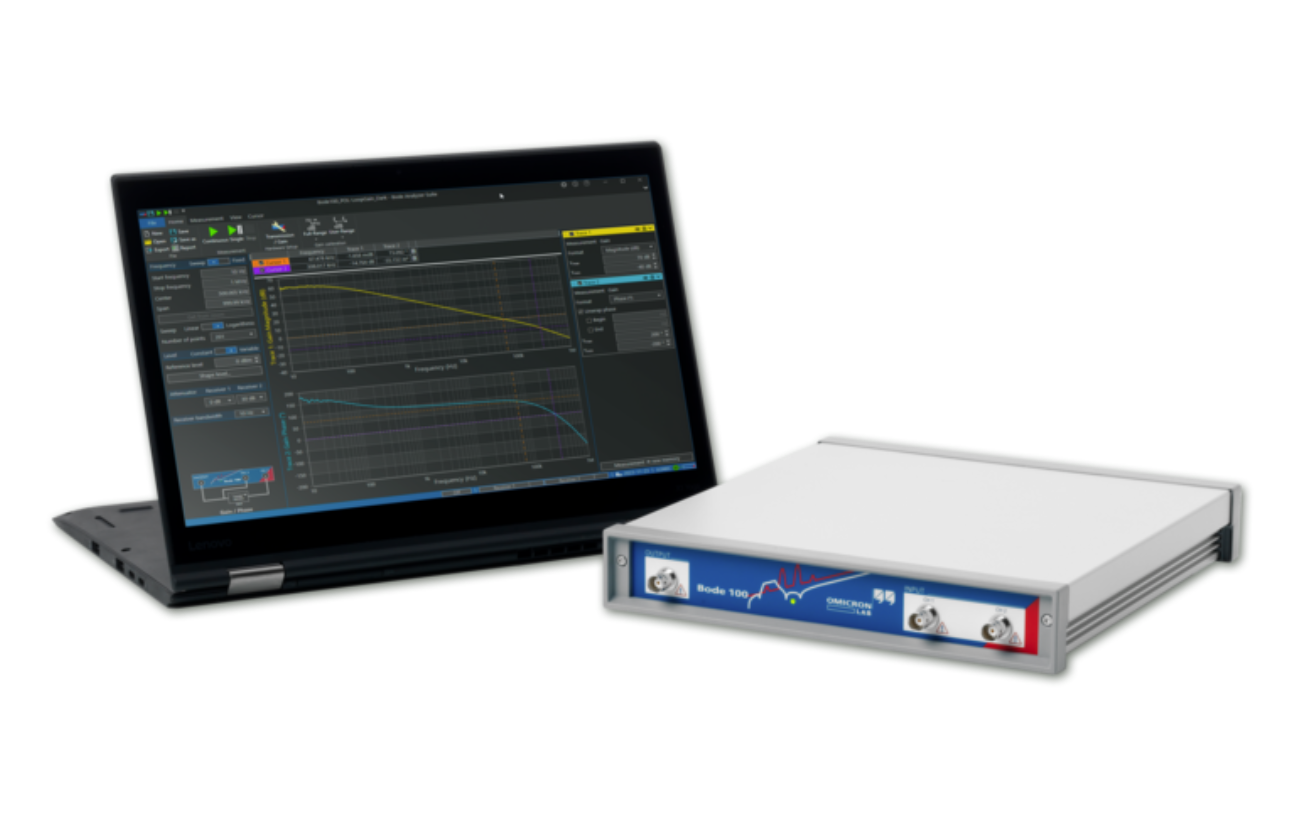

Bode 100 Vector Network Analyzer
1Hz-50MHZ
1Hz-10MHZ
